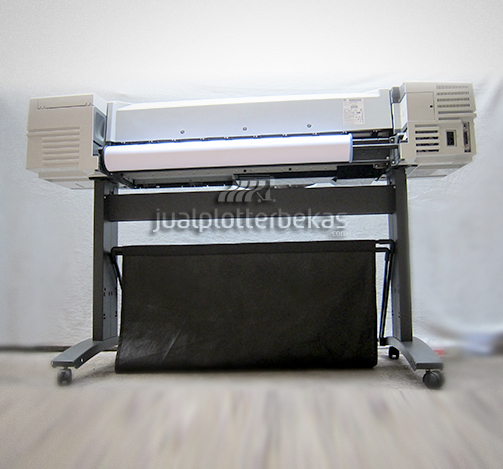

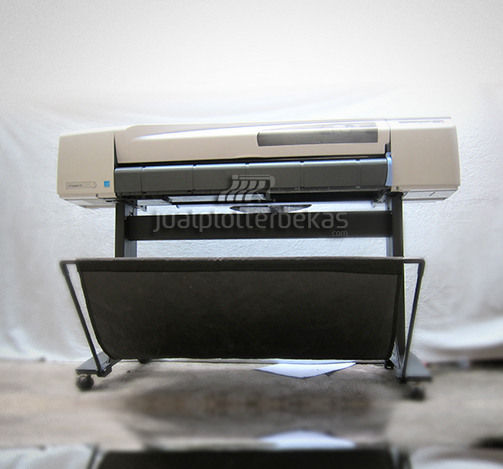

HP Designjet 510 42 inch |

Description

HP Designjet Plotter dapat membantu anda mencetak gambar Peta | CAD di rumah dan menghemat biaya cetak, menghindari kerumitan, dan waktu yang terbuang percuma apabila anda membayar jasa pencetakan (outsource). Plotter HP Designjet 510 42” merupakan plotter yang Harga nya sangat terjangkau saat ini. Plotter ini dapat mencetak dengan kecepatan hingga 55 detik untuk dokumen ukuran D/A1-size dengan dukungan HP-GL/2.

plotter bekas HP Designjet 510 42 Merupakan plotter yang ideal untuk pengguna rumahan/kantor, mahasiswa arsitektur, konsultan, atau kelompok kerja kecil yg menginginkan mencetak di rumah. Dengan hasil cetak yg maksimal untuk CAD, map, grafik, dll.

plotter bekas yang kami sediakan antara lain plotterHP Designjet 510 42 inch dan plotterHP Designjett 111 Nr 24 inch untuk informasi stok silahkan hub kami.

Kelengkapan:
1 unit plotter HP Designjet 510 42 inch ex display
kaki penyangga plotter
CD driver & manual
USB cable & power cable
kertas hvs 1 roll
CMYK cartridge lengkap, masih full
CMYK printhead

Spesifikasi HP Designjet 510

Manufacturer		HP
Manufacturer Part #		CH337A#B1K
Printing	Print speed	Line drawings: Fast: 55 sec/page on A1/D, 38 A1/D prints per hour on plain media (increased speed on) Color images: Fast: 3.5 min/page on A1/D on coated media Normal: 9.5 min/page on A1/D on glossy media
	Print resolution	Up to 2400 x 1200 optimized dpi
	Recommended volume	Up to 50 A1/D per week
	Margins (top x bottom x left x right)	Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in) Sheet: 17 x 17 x 5 x 5 mm (0.7 x 0.7 x 0.2 x 0.2 in)
	Technology	HP Thermal Inkjet
	Ink types	Dye-based (color), pigment-based (black)
	Ink colors	Cyan, magenta, yellow, black
	Ink drop	4 pl (color), 18 pl (black)
	Ink cartridge size	69 ml (CMYK) or 28 ml (CMY)
	Print heads	4 (1 each cyan, magenta, yellow, black)
	Line accuracy	+/- 0.2%
	Minimum line width	Color: 0.07 mm (0.0027 in); black: 0.09 mm (0.0035 in)
Memory		160 MB standard memory, expandable to 416 MB with HP Designjet 256 MB Memory Upgrade
Media	Handling	Single sheet feed, roll feed, automatic cutter (cuts all media except canvas)
	Types	Bond and coated, technical, film, photographic, proofing, self-adhesive, banner and sign, canvas
	Size	140 x 140 to 1067 x 1897 mm (5.5 x 5.5 to 42 x 74.7 in) sheets, 458 to 1067 mm (18 to 42 in) rolls
	Max. roll diameter	100 mm (3.9 in)
	Max. roll length	Unlimited (depends on media thickness)
Connectivity	Interfaces (standard)	1 USB 2.0 compliant port, 1 IEEE-1284-compliant parallel port, 1 EIO Jetdirect accessory slot
	Interfaces (optional)	Compatible HP Jetdirect EIO print servers
	Print languages	HP Designjet 510 Printer: HP-GL/2, HP-RTL, HP PCL 3 GUI HP Designjet 510ps Printer(4: Adobe® PostScript® 3™, HP-GL/2, HP-RTL, HP PCL 3 GUI
Drivers	HP Designjet 510 Printer	HP-GL/2, HP-RTL Windows® drivers; Optimized Windows driver for AutoCAD 2000 and higher; HP PCL 3 GUI driver for Mac OS X
Recommended system	Windows	Windows Vista®, XP®, Server 2003, 2000: Pentium® 4 (1 GHz or higher), 1 GB RAM, 2 GB available hard disk space
Recommended system	Macintosh	Mac OS X (10.3, 10.4, 10.5): PowerPC G4, G5, or Intel® Core™ Processor, 1 GB RAM, 2 GB available hard disk space
Dimensions (w x d x h)	Printer	42-in models (with stand): 1690 x 674 x 1100 mm (67 x 27 x 43 in)
Dimensions (w x d x h)	Shipping	42-in models (with stand): 1975 x 645 x 978 mm (77.8 x 25.4 x 38.5 in)
Software solutions		HP Instant Printing Utility: Easily and quickly print your HP-GL/2 and PLT files with the simple click of a button. More information: www.hp.com/go/hpinstantprintingutility
Weight		Printer: 42-in models (with stand): 45.2 kg (99.6 lb)
Weight		Shipping: 42-in models (with stand): 105 kg (232 lb)
What’s in the box		HP Designjet 510 Printer, printer stand and media bin (42-in models only), spindle, printheads (4 x 1 color), introductory ink cartridges (x4), EFI Designer Edition for HP CD (PS models only(4), quick reference guide, setup poster, doc and drivers CD, customer service guide, power cord
